CMM-10-236 Spring Machine

  • CMM-10-236 Spring Machine
CMM-10-236 Spring Machine
  • Model: CMM-10-236
  • Introduction: Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
  • Spec: Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
Consult now

Product Advantage

1、Windows based operating system.

2、Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.

3、Intuitive graphics user interface is based on Windows and its crash free

4、Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.

5、Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

Technical Parameters

MODEL CMM-10-236
Wire Dia. 0.15-2.3mm
Max. Wire Feed 10000.00mm
Min. Wire Feed 0.01mm
Max. Wire Feed Speed 100m/min
Max. Wire Feed Length Unlimited
Number Of Axes 10
Power 10000W
Voltage 380V
Software Industrial Grade Computer
Program Storage 2000
Air Compresser System Air pressure 5-6KG/cm
Pin 3
Dimensions Depth 1240mm
Width 1280mm
Height 1730mm
Machine Weight 930KG

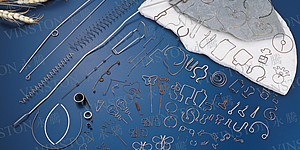

Sample Display
