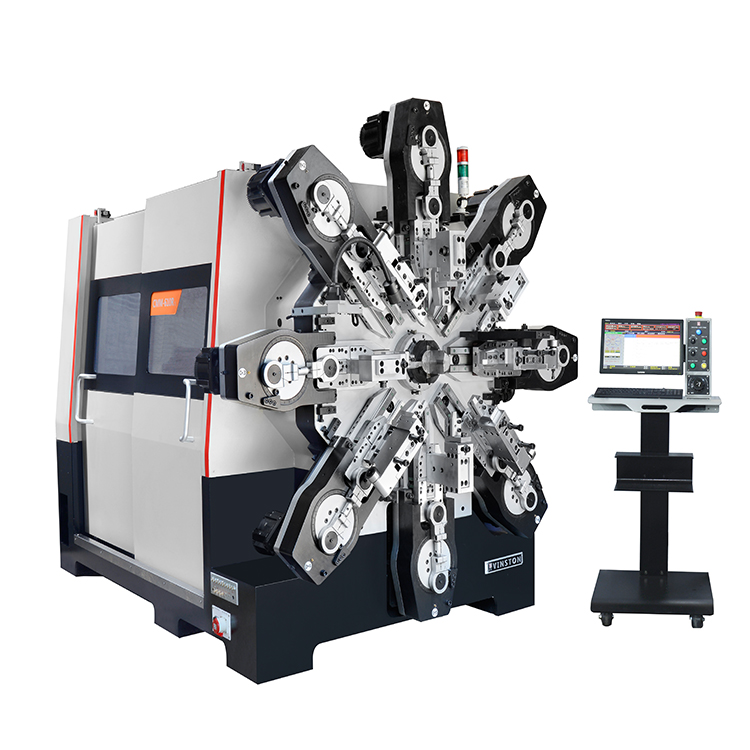

CMM-12-680R Spring Machine

  • CMM-12-680R Spring Machine
CMM-12-680R Spring Machine
  • Model: CMM-12-680R
  • Introduction: Revolutionary 12 axes spring & wire forming machines that allow spring manufacturers to massively produce a variety of springs with high speed and accuracy!
  • Spec: Revolutionary 12 axes spring & wire forming machines that allow spring manufacturers to massively produce a variety of springs with high speed and accuracy!
Consult now

Product Advantage

1、Free arm technology

2、Windows screen operation.

3、Servo driven free arm technology that allows a forming blade to move freely on an X,Y plane.

4、Intuitive graphics user interface is based on Windows and its crash free characteristic is due to the employment of a bulletproof software engineering methodology. This makes learning and configuring highly complex springs a simple task.

5、Equipped with standard bells and whistles such as rotary wire, rotary quill, spinner and 6 forming blades.

Technical Parameters


MODEL CMM-12-680R
Wire Dia. 3.6-8.0mm
Max. Wire Feed 10000.00mm
Min. Wire Feed 0.01mm
Max. Wire Feed Speed 28m / min
Max. Wire Feed Length Unlimited
Number Of Axes 12
Power 52.5 KW
Voltage 220V(Customizable)
Software Industrial
Program Storage 2500
Voltage Regulator Power 30KW
Air Compresser System Air pressure 5-6KG/cm
Air cylinder 3pcs
Dimensions Depth 3600mm/142"
Width 2220mm/88"
Height 2310mm/91"
Machine Weight 7000KG/15433 lbs
