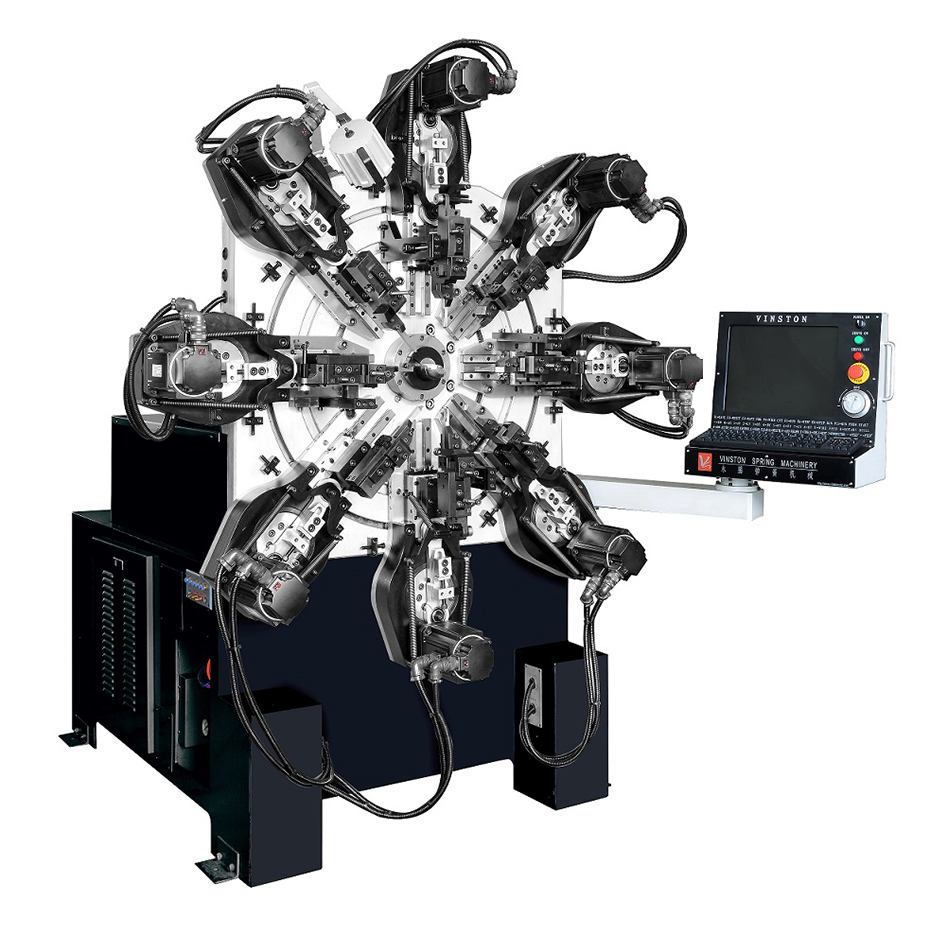

- Model： CMM-10-400
- Introduction： Revolutionary 10 axes spring & wire forming machines that allow spring manufacturers to massively produce a variety of springs with high speed and accuracy!
- Spec： Revolutionary 10 axes spring & wire forming machines that allow spring manufacturers to massively produce a variety of springs with high speed and accuracy!
1、Free arm technology.
2、Windows screen operation.
3、Servo driven free arm technology that allows a forming blade to move freely on an X,Y plane.
4、Intuitive graphics user interface is based on Windows and its crash free characteristic is due to the employment of a bulletproof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
5、Equipped with standard bells and whistles such as rotary wire, rotary quill, spinner and 6 forming blades.
|Max. Wire Feed||10000.00mm|
|Min. Wire Feed||0.01mm|
|Max. Wire Feed Speed||100m/min|
|Max. Wire Feed Length||Unlimited|
|Number Of Axes||10|
|Software||Industrial Grade Computer|
|Air Compresser System||Air pressure||5-6KG/cm|
